If you’re exploring how to manufacture foam PVC board, choosing the right production equipment is crucial. The machinery used directly affects product quality, throughput, energy efficiency, and cost control.
In this deep dive, we’ll cover critical equipment types for foam PVC board manufacturing—including extruders, calibration tables, cutting saws, and surface finishing machines.
Overview of Foam PVC Board and Applications
What Makes Foam PVC Board a Unique Material?

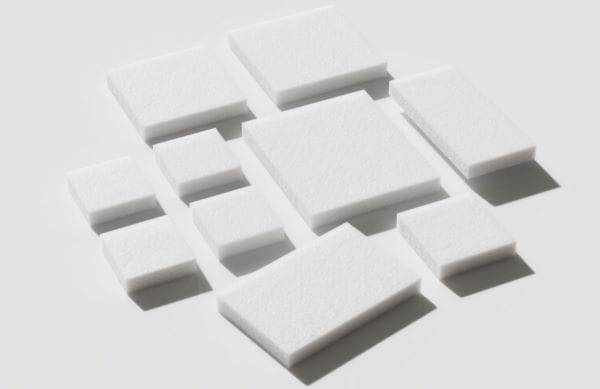

Foam PVC board is a lightweight composite panel made from rigid polyvinyl chloride blended with foaming agent, creating a cellular structure. It’s valued for its flatness, smooth surface, dimensional stability, and resistance to moisture, chemicals, and UV exposure. Typical thicknesses range from 1 mm to 30 mm or more, depending on intended applications.
Common Long-Tail Applications and Keywords
These boards are widely used in signage, interior wall panels, foam PVC sheet printing, graphic display boards, foam board fabrication, and thermoforming. Related search phrases include “foam PVC rigid sheet extrusion line”, “foam PVC board cutting saw”, and “foam PVC display panel machine”.
Key Equipment for Producing Foam PVC Board

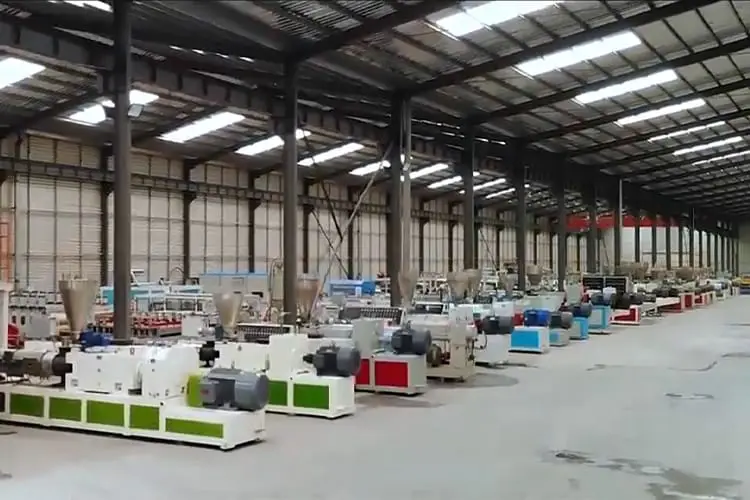

PVC Foam Extruder and Screw Design
The extrusion process starts with a twin-screw or single-screw extruder specifically designed for foam PVC compounding. The screw geometry, compression ratio, and melt temperature control dictate foam density, bubble distribution, and surface quality. Data from extrusion studies show that maintaining melt temperatures between 160–180 °C yields the optimal cellular structure for panel strength.
Calibrating Table and Cooling Belt Section
After extrusion through a T-die, the hot sheet must pass along a calibration table with cooling zones and vacuum clamps. This keeps thickness uniformity and surface flatness. Proper conveyor speed and cooling water temperature ensure consistent output across wide foam PVC boards.
Precision Cutting Saw and Edge Trimming System
Once cooled, the continuous foam PVC board enters a precision cutting section. High‑speed saws or blade systems cut to specified widths, while trimming units remove edge beads. Clean cuts and accurate tolerances are essential for further finishing or lamination.
Surface Grinding, Laminating, or Finishing Modules
Optional equipment may polish surfaces, apply decorative films, or laminate printed layers. Surface finishing ensures the board meets quality standards for smoothness and coating adhesion—vital for signage or furniture panel applications.
Equipment Specifications and Process Optimization
Extruder Capacity and Output Control
Extruder capacities typically range from 100 kg/h for small production lines to over 1 000 kg/h for industrial-scale operations. Line speed must match downstream capacity; for example, a 600 mm wide board at 10 m/min corresponds to ~360 kg/h, considering foam density.
Temperature Zones and Melt Control
Proper instrument zones in the extruder barrel and die head maintain consistent foam structure. According to material engineering references, maintaining melt homogeneity within ±2 °C avoids surface imperfections and foam collapse.
Cooling Zone Configuration and Calibration Precision
Calibration tables include vacuum boxes, roller clamps, and cooling rails. Uniform vacuum suction across surface and controlled belt temperature (typically 20 °C water) keep overall thickness within ±0.1 mm for thin boards and ±0.3 mm tolerance for heavier sheets.
Saw Tolerance and Edge Smoothness
Cutting equipment needs to achieve dimensional accuracy within ±0.5 mm. Saw blade RPM, feed rate, and blade material influence edge finish quality—particularly important for printed foam PVC board lines.
Advantages of Different Equipment Configurations
Batch vs. Continuous Foam PVC Sheet Lines
Continuous extrusion lines offer high throughput and consistent quality, suitable for foam PVC rigid sheet production. Batch systems can produce thicker panels or specialty foam boards but at lower speed. Continuous lines save energy and manpower in large-scale operations.
Single vs. Twin Screw Extruders
Twin-screw extruders offer better mixing, dispersion of foam agent, and stable pressure control—improving board uniformity. Single-screw extruders are simpler and more energy-efficient but may produce more foam density variation.
Comparison Table: Key Equipment Attributes
| Equipment Module | Function | Key Specs | Impact on Board Quality |
|---|---|---|---|
| Extruder & Screw | Melts and foams raw PVC | 100–1 000 kg/h, 160–180 °C | Foam density, board flatness |
| Calibration & Cooling Table | Sets thickness and cools sheet | Vacuum clamp, belt control | Thickness tolerance, surface finish |
| Precision Saw & Trim Unit | Cuts to size, removes edges | ±0.5 mm tolerance | Dimensional accuracy, edge quality |
| Surface Finishing Module | Polishing, laminating, printing prep | Grinding/film lamination | Smooth surface, decorative finish |
Operational Best Practices and Maintenance
Regular Inspection and Cleaning
Daily cleaning of extruder barrel, die lip, vacuum table, and saw blades prevents foam contamination and rough edges. Scheduled downtime for deep inspection helps maintain line performance.
Calibration and Temperature Audits
Monitor melt temperature zones and calibration vacuum evenly. Periodic audits ensure consistency over long runs. Document readings to track process drift.
Blade and Roller Wear Monitoring
Replace blades when cutting quality decreases or blade chips appear. Inspect rollers and vacuum seals; wear can cause board marking or vacuum loss.
Safety Guidelines and Environmental Considerations
Ventilation and Steam Removal
Foam PVC extrusion produces steam and low-level gases. Proper ventilation at the cooling and die zones ensures operator safety.
Energy Use and Power Management
Extrusion is energy-intensive. Optimizing motor loading and staged heating profiles saves electricity and lowers material hot spots.
Waste Management and Recycling
Trim waste and edge scrap can be reground and reused within the extruder, reducing waste. Follow recommended ratios (typically up to 10% regrind) to maintain foam structure.
Conclusion
Producing high-quality foamed PVC sheets requires careful selection and adjustment of equipment—from extruder and die design to calibration tables, cutting saws, and finishing modules. Proper configuration ensures consistent foam structure, flat surfaces, precise dimensions, and efficient production.
If you’re ready to define equipment needs, evaluate machinery options, or optimize output quality, our team is here to help. Contact us today for expert equipment guidance, production setup recommendations, and process optimization support.
FAQ
What density should foam PVC board be?
Typical densities range from 0.4 to 0.9 g/cm³ depending on thickness and rigidity requirements. Lower density yields lighter boards but may reduce mechanical strength.
Can I extrude foam PVC board in thickness up to 30 mm?
Yes—careful control of die cooling and vacuum calibration ensures flatness in thicker boards. Requires appropriate cooling table length and precise vacuum zone segmentation.
Is twin-screw extrusion always better than single-screw?
Twin-screw offers better mixing and foam stability, while single-screw is simpler and less expensive. For high-quality visual surfaces, twin-screw is often preferred.
How do I minimize surface roughness?
Maintain die lip temperature, clean regularly, and use proper cooling and vacuum strength. Surface finishing modules also help polish and prep the board if needed.
What is the ideal line speed for a 600 mm board width?
Speeds around 8–12 m/min balance foam quality with output. Higher speeds may compromise cell structure or thickness uniformity unless the line is optimized.
